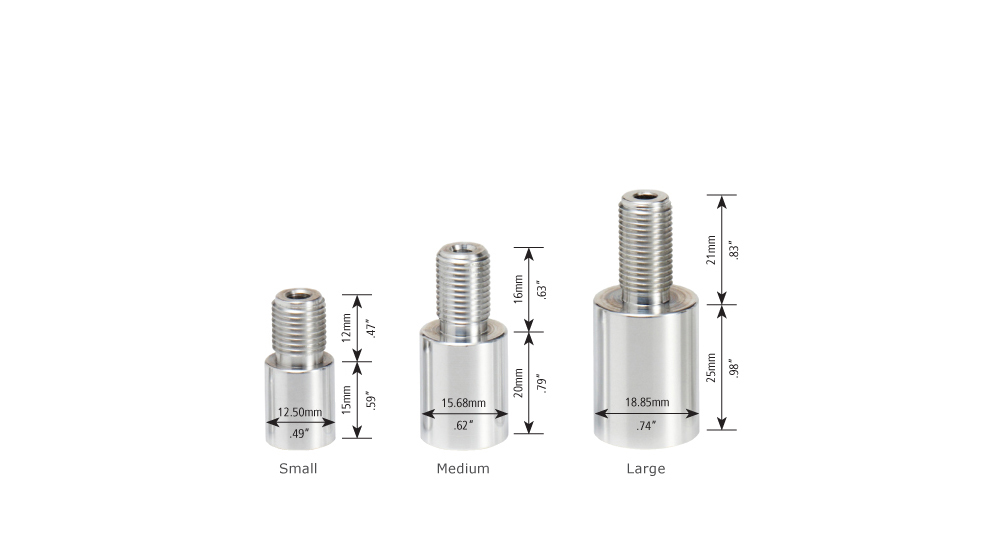

dimensions

Thread diameters are standardised across all materials.
A Part and D Part internal threads are both 10mm x 1mm
E Part and D Part external thread diameters are both 9.75mm = .38"
External threads finish 2mm from the end of the Part.
